1233 Jamb Detail Classic Closed Cavity. SILL FLAsHINg TRAY 42350 This flashingtray is designed to go under Series 542 and 618 sliding doors where they are installed into firstfloor situations. Garage door head flashing detail nz.
Garage Door Head Flashing Detail Nz, StoLite Construction System ParapetMetal Flashing Detail SL 500. The head flashing upstand must be sealed to the face of the wall underlay with flexible flashing tape or an extra layer of wall underlay must be dropped from above to create a gravity drainage path out over the flashing. Flashclad can assist in providing designers architects structural and façade engineers with technical design detailing and peer reviewing.
Pin On Derevyannye Ramy From pinterest.com
Head flashings should overhang the sides of any window or door by differing amounts based on wall construction. Contact Dominator for a free quote. The total upstand must be 40mm minimum. StoLite Construction System Garage Door - Rendered Head Detail SL 410.
1241 Fibre Cement Reveal Head.
StoLite Construction System Garage Door - Timber Jamb Detail SL 409. Stock Awning Hung Windows. Garage door head flashing detail nz. StoLite Construction System ParapetMetal Flashing Detail SL 500. The Nevada garage doors striking negative detail suits contemporary New Zealand home designs that demand simplicity. Garage Door Head Flashing Detail Nz Figure 2 garage door head detail with direct fixed bevel back horizontal weatherboard cladding.
Read another article:
Source: midlandbrick.co.nz
Flashing needed for garage doors The requirements for flashing garage door openings are simple they are the same as for external door and window details. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. Wwwsteelandtubeconz Technical helpline 0800 333 247Quick Code. StoLite Construction System ParapetMetal Flashing Detail SL 500. Technical Details Midland Brick Nz.
Source: theroofingstore.co.nz

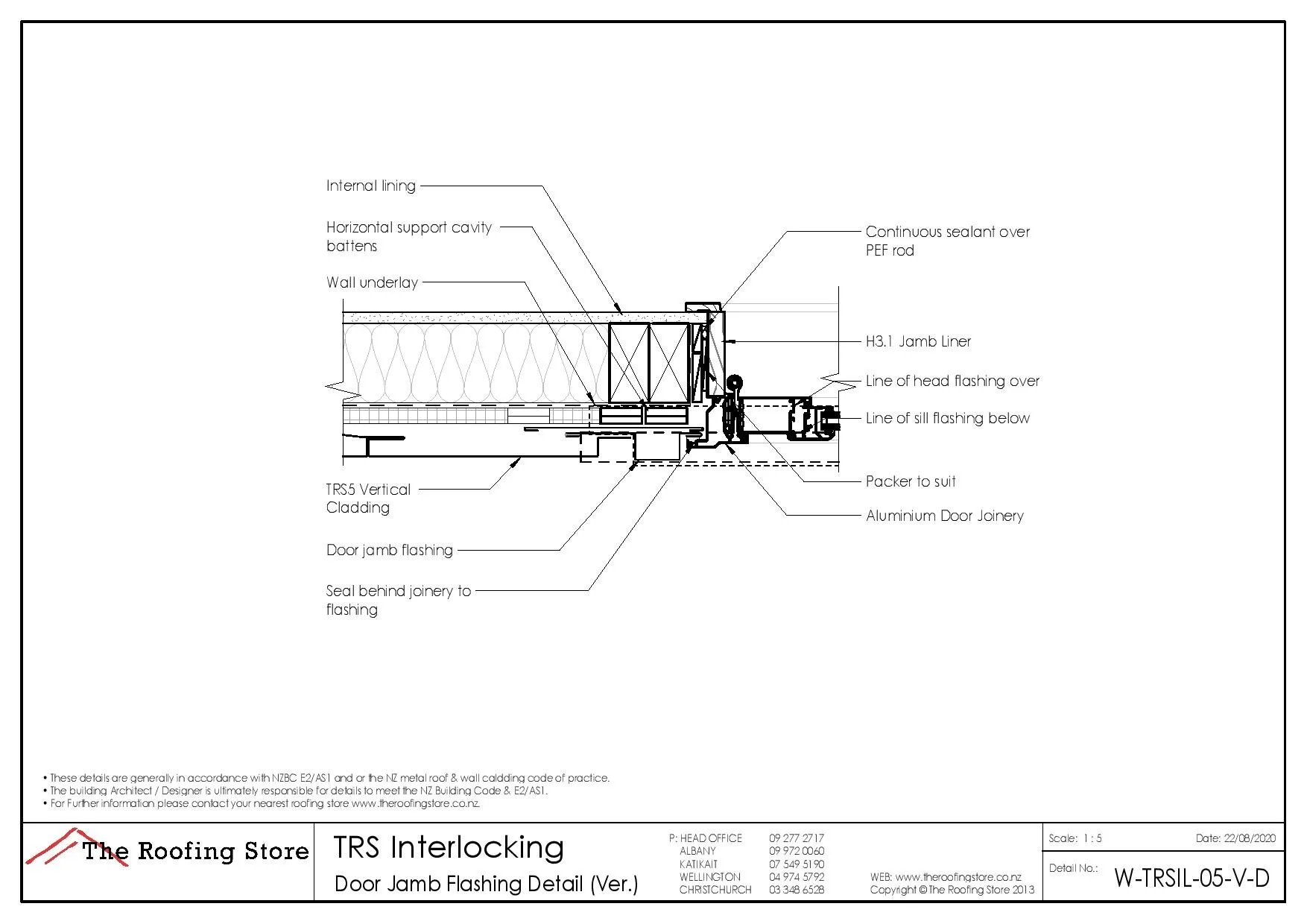

Flashing needed for garage doors The requirements for flashing garage door openings are simple. 1243 Fibre Cement Reveal Jamb. The New Zealand Roof and Wall Cladding Code of Practice has been written for New Zealand conditions that recognize it as an unique island 2000 km away from another major land mass which is subject to high rainfall high humidity extremes of weather and high winds. General Detail General Roller Door Opening Details genr_general-roll_door Scale 15 Cross Section BA36 Roofing 160112. The Roofing Store Trs Interlocking Steel Wall Cladding New Zealand.
Source: chhply.co.nz
Two-door French Door Specials 1200mm wide. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. The New Zealand Roof and Wall Cladding Code of Practice has been written for New Zealand conditions that recognize it as an unique island 2000 km away from another major land mass which is subject to high rainfall high humidity extremes of weather and high winds. Two-door French Door Specials 1200mm wide. Shadowclad Flashings Plywood Nz.
Source: buildmagazine.org.nz
Flashclad can assist in providing designers architects structural and façade engineers with technical design detailing and peer reviewing. They are the same as for external door and window details. The lap under the cladding must be a minimum 35mm 60mm in the extra-high wind zone. 1242 Fibre Cement Reveal Sill. Detailing Garage Door Heads Branz Build.
Source: prendos.co.nz
MASONS PLATABRICK LIMITED0800 522 533infompbconzwwwmpbconz Page 30. StoLite Construction System Garage Door - Timber Jamb Detail SL 409. Two-door French Door Specials 1200mm wide. All this with the same quality hardware styles and finish on the front of the door that people around New Zealand have come to know and expect from the trusted brand of Dominator. Garage Door Head Flashing.
Source: buildmagazine.org.nz
Products are available for every commercial industrial and controlled environment building applications giving AceDoors the widest product range in New Zealand. A drainage and ventilation gap of 5 mm must be left between the bottom of the cladding. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. Head flashings in sheltered zones within 45 of an overhang might accommodate wider overhangs of the head flashing due to reduced risk of water entry. Detailing Garage Door Heads Branz Build.
Source: midlandbrick.co.nz
150x35mm H31 timber reveal HEAD - GARAGE DOOR Original Scale 12SHADOWCLAD Flashclad extruded aluminium one piece Cavity Closure and Head Flashing with Stop End shown dashed Revision - 01 October 2019 Building wrap or Rigid Air Barrier installed as per. They are the same as for external door and window details. Head flashings in sheltered zones within 45 of an overhang might accommodate wider overhangs of the head flashing due to reduced risk of water entry. MASONS PLATABRICK LIMITED0800 522 533infompbconzwwwmpbconz Page 30. Technical Details Midland Brick Nz.
Source: hermpac.co.nz
Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. Head flashings should overhang the sides of any window or door by differing amounts based on wall construction. 1221 RoofWall Junction Closed Cavity. OPENING FLASHING GARAGE DOOR - HeadDetail 25 Scale 12. Hermpac Limited Construction Drawings.
Source:
1233 Jamb Detail Classic Closed Cavity. Please note these files require Adobe Acrobat Reader or AutoCad software. Head flashings in sheltered zones within 45 of an overhang might accommodate wider overhangs of the head flashing due to reduced risk of water entry. 150x35mm H31 timber reveal HEAD - GARAGE DOOR Original Scale 12SHADOWCLAD Flashclad extruded aluminium one piece Cavity Closure and Head Flashing with Stop End shown dashed Revision - 01 October 2019 Building wrap or Rigid Air Barrier installed as per. 2.
Source: hermpac.co.nz
Parapets Balustrades Decks Series 500. For this reason the 09 mm limit should apply in all situations. The contents of this Code of Practice are relevant to other countries. Garage Door Head Flashing Detail Nz Figure 2 garage door head detail with direct fixed bevel back horizontal weatherboard cladding. Hermpac Limited Construction Drawings.
Source: specialized.co.nz
Flashclad can assist in providing designers architects structural and façade engineers with technical design detailing and peer reviewing. Packers Turn up ends of head flashing 20mm Aluminium Window Head Moulding Flashing with 15 Fall to be installed by builder Approved foam tape adhered to top of timber trim Water resistant air seal 35mmMinCover. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. The contents of this Code of Practice are relevant to other countries. Digital Drawings Cad Drawing Pdf Specialized Nz.
Source: prendos.co.nz
Products are available for every commercial industrial and controlled environment building applications giving AceDoors the widest product range in New Zealand. StoLite Construction System Garage Door - Rendered Head Detail SL 410. The purpose of the tray is to guide any water that should. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. Garage Door Head Flashing.
Source: theroofingstore.co.nz
1221 RoofWall Junction Closed Cavity. Head flashings in sheltered zones within 45 of an overhang might accommodate wider overhangs of the head flashing due to reduced risk of water entry. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. 43a Hobill Ave Wiri. The Roofing Store Trs Interlocking Steel Wall Cladding New Zealand.
Source: pinterest.com
Garage Door Head Rusticated Palliside Weatherboards Drained Cavity. Acceptable Solution E2AS1 to Building Code clause E2 External moisture is quite prescriptive in terms of head flashing profile when used as a means of compliance. When installing the head flashing make sure it is in contact with the top edge of the window. The total upstand must be 40mm minimum. Pin On Derevyannye Ramy.
