Anti-Roll Bar Design Automation FEA Fatigue Analysis iv. Typically anti roll bars act as a supplement to the corner springs in generating roll resistance and account for around 20-40 of the total vehicle roll stiffness. Anti roll bar design equations.

**Anti Roll Bar Design Equations**, We saw in Chapter 5 that it can also be used to adjust the understeer gradient. Hello and welcome to SVA Designin this video i show you how i made the anti roll bar mechanisme for the single seater hypercar suspention that im designing i. Rear bar uses a conventional torsion type bar but the front anti roll mechanism is an unconventional antiroll bar using a.

Pdf Fracture Of An Automobile Anti Roll Bar Semantic Scholar From semanticscholar.org

Anti-Roll Bar Stiffness - U-Bar For calculating the stiffness of a typical U-style anti-roll bar. Anti-Roll Bar Design Automation FEA Fatigue Analysis iv. 34 Appendix C Equations used Equation 1 Height of mean roll centre π πΆπ§ππππ ππππ ππ Equation 2 Roll moment of unsprung mass ππ₯ π’ππ πππ’ππ πππ’ππ πππ’ππ π π ππ π Equation 3 Moment about the lower inner wishbone pivot Kp πΎπ πΎπ π2 π2 Equation 4 Moment about the instantaneous centre Kw πΎ π€ πΎπ . Then that number simply needs to have 1 divided by it in the form.

### This illustrates the challenge undertaken with using an ARB for this application.

This helps in equal application of torque on both wheels. As a result the outer wheel moves up with respect to the chassis and the inner wheel will move down. This helps in equal application of torque on both wheels. Ated and to calculate the essential parameters of the anti-roll bar 14. The central axis of the vehicle. With this suspension concept the.

**Read another article**:

Source: sciencedirect.com

Anti Roll Bar An Overview Sciencedirect Topics They can all be added together in series to calculate an overall stiffness for the anti-roll bar. Assuming that the vehicle acts in pure roll the roll stiffness contribution by the anti-roll bar can be estimated using the bar dimensions and material properties. Electro-hydraulic anti-roll bar is formulated by fluid dynamical electrical and mechanical equations. The main equation used in Milliken and Milliken is the total ARB roll rate value needed to increase the roll stiffness to the desired roll gradient 7 K Ξ¦ A Ξ 180 K Ξ¦ D E S K T t 2 2 K T t 2 2 Ο 180-K Ξ¦ D E S-Ο K W t 2 2 180.

Source: link.springer.com

A Detailed Study On Design Fabrication Analysis And Testing Of The Anti Roll Bar System For Formula Student Cars Springerlink Anti- Ro llbar increases overall roll stiffness o f the vehicle thus. Electro-hydraulic anti-roll bar is formulated by fluid dynamical electrical and mechanical equations. The central axis of the vehicle. The anti-roll bar cantilever length measured from the centre line of the roll bar to where the canti-lever mounts to the drop link.

Source: link.springer.com

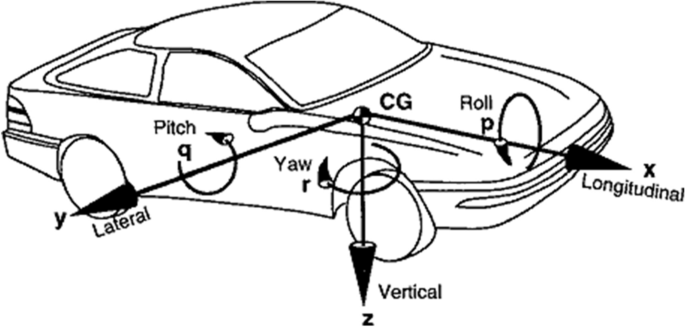

A Detailed Study On Design Fabrication Analysis And Testing Of The Anti Roll Bar System For Formula Student Cars Springerlink 34 Appendix C Equations used Equation 1 Height of mean roll centre π πΆπ§ππππ ππππ ππ Equation 2 Roll moment of unsprung mass ππ₯ π’ππ πππ’ππ πππ’ππ πππ’ππ π π ππ π Equation 3 Moment about the lower inner wishbone pivot Kp πΎπ πΎπ π2 π2 Equation 4 Moment about the instantaneous centre Kw πΎ π€ πΎπ . Direction on the Y- ax is during which the vehicle rolls around. If there is any offset or misalignment while installing the anti-roll bar it disturbs the. K_thetaarbf fracpi D_f4G32l_f k_thetaarbr fracpi D_r4G32l_r k_phiarbf k_thetaarbf textrmMR_arbf2 t_f2 k_phiarbr k_thetaarbr textrmMR_arbr2 t_r2.

Source: suspensionsecrets.co.uk

Anti Roll Bars How To Adjust And Tune Suspension Secrets To understand how it works we start by considering a suspension without an anti-roll bar. The central axis of the vehicle. Anti- Ro llbar increases overall roll stiffness o f the vehicle thus. If the car drives through a corner its body will roll to the outside of the bend.

Source: formula1-dictionary.net

Roll Stabilizers Assuming that the vehicle acts in pure roll the roll stiffness contribution by the anti-roll bar can be estimated using the bar dimensions and material properties. Rear bar uses a conventional torsion type bar but the front anti roll mechanism is an unconventional antiroll bar using a. The main equation used in Milliken and Milliken is the total ARB roll rate value needed to increase the roll stiffness to the desired roll gradient 7 K Ξ¦ A Ξ 180 K Ξ¦ D E S K T t 2 2 K T t 2 2 Ο 180-K Ξ¦ D E S-Ο K W t 2 2 180. When both wheels are on the same level the anti-roll bar does not affect the suspension motion.

Source: link.springer.com

A Detailed Study On Design Fabrication Analysis And Testing Of The Anti Roll Bar System For Formula Student Cars Springerlink We saw in Chapter 5 that it can also be used to adjust the understeer gradient. The central axis of the vehicle. When both wheels are on the same level the anti-roll bar does not affect the suspension motion. The effects of anti-roll bar design parameters on final anti-roll bar properties are also evaluated by performing sample analyses with the automated design program developed in this study.

Source: suspensionsecrets.co.uk

Anti Roll Bars How To Adjust And Tune Suspension Secrets D 1 External diameter of lever arm in m d 2 Internal diameter of lever arm in m use zero if bar is solid Where. Later by iterating the length of the moment arm the torque tau applied on the shaft is iterated by using Eq. When one wheel is riding on a hump the anti-roll bar will be twisted and transfer the force to another wheel to push it down so the car body will remain balanced. This paper deals with the design and mathematical modeling of antiroll bars to reduce the body roll of the vehicle from 15g to less than 10g.

Source: racingcardynamics.com

Weight Transfer How It Works And How To Use It In Setup KΞΈA Anti-Roll Bar Rate Contribution to Car Roll Rate Nmradian KΞΈB. With this suspension concept the. Direction on the Y- ax is during which the vehicle rolls around. The anti-roll bar is an important element of the suspension since it allows the designer to control the roll stiffness of the vehicle independently from the bump stiffness.

Source: quora.com

How To Calculate The Over Steer Or Under Steer Due To The Anti Roll Bar Quora A linear model is derived for control-oriented purposes. Sprung mass cog ht-Front Roll Centre htRear Roll Centre ht-Front Roll Centre ht1-sprung mass wt. I am however more interested in making calculations and a. K T Torsion bar stiffness.

Source: suspensionsecrets.co.uk

Anti Roll Bars How To Adjust And Tune Suspension Secrets 34 Appendix C Equations used Equation 1 Height of mean roll centre π πΆπ§ππππ ππππ ππ Equation 2 Roll moment of unsprung mass ππ₯ π’ππ πππ’ππ πππ’ππ πππ’ππ π π ππ π Equation 3 Moment about the lower inner wishbone pivot Kp πΎπ πΎπ π2 π2 Equation 4 Moment about the instantaneous centre Kw πΎ π€ πΎπ . With this suspension concept the. However due to the way that springs in series need to be added the following equation is used. Anti-Roll Bar Design Automation FEA Fatigue Analysis iv.

Source: semanticscholar.org

Pdf Fracture Of An Automobile Anti Roll Bar Semantic Scholar However due to the way that springs in series need to be added the following equation is used. The thicker the bar the more anti-roll ability it has. The equation for the contribution of the anti-roll bar is. K T Torsion bar stiffness.

Source: suspensionsecrets.co.uk

Calculating Ideal Spring And Roll Bar Rates Part 2 How To Adjust And Tune Suspension Secrets This will give you a final number for the stiffness of the anti-roll bar. A linear model is derived for control-oriented purposes. Then that number simply needs to have 1 divided by it in the form. Anti-roll bar are rotated to the same angle in the same direction it will not create a reaction moment.

Source: formula1-dictionary.net

Roll Stabilizers Sprung mass cog ht-Front Roll Centre htRear Roll Centre ht-Front Roll Centre ht1-sprung mass wt. K_thetaarbf fracpi D_f4G32l_f k_thetaarbr fracpi D_r4G32l_r k_phiarbf k_thetaarbf textrmMR_arbf2 t_f2 k_phiarbr k_thetaarbr textrmMR_arbr2 t_r2. However due to the way that springs in series need to be added the following equation is used. Later by iterating the length of the moment arm the torque tau applied on the shaft is iterated by using Eq.

Source: link.springer.com

A Detailed Study On Design Fabrication Analysis And Testing Of The Anti Roll Bar System For Formula Student Cars Springerlink Typically anti roll bars act as a supplement to the corner springs in generating roll resistance and account for around 20-40 of the total vehicle roll stiffness. K T Torsion bar stiffness. To understand how it works we start by considering a suspension without an anti-roll bar. I am however more interested in making calculations and a.

Source: researchgate.net

Pdf An Approximate Method For The Evaluation Of The Roll Stiffness Of Road Tankers Anti-Roll Bar Stiffness - U-Bar For calculating the stiffness of a typical U-style anti-roll bar. For balancing the force acting on the anti-roll bar mounting point is then calculated according to the chosen motion ratio for the anti-roll bar. The size was determined by comparing the required area moment of inertial to the area moment of inertia of the arb system torsion bar with desired dimensions. So the anti-roll bar system design analysis and manufacturing for a formula student race car is a not well-studied topic with the help of this particular study and we aim to develop tunable anti-roll bar devices for individual axles for a Formula student race car.
